Boyser Lobe Pump

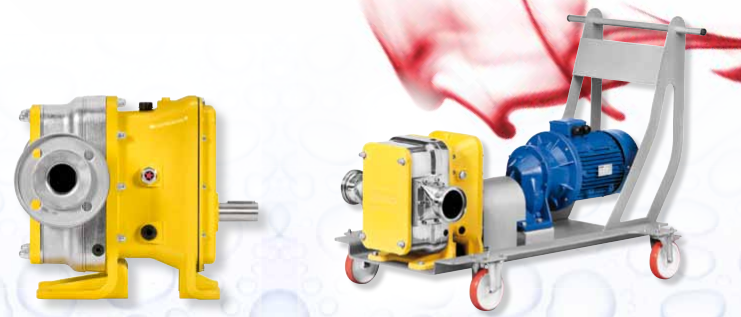

Boyser Lobe Pump

Boyser เป็นผู้ผลิต Lobe Pump ที่ใช้ในอุตสาหกรรมหนักทุกประเภท

Boyser is a Spanish manufacturer provide various kind of lobe pump. The operation principle of a rotary lobe pump is based on the accurate movement of its rotors, which in turn depends on the perfectly regulated synchronisation of a corresonding set of high precision gears.

The result is a positive-displacement volumetric pump with exceptional performance, which likewise allows the use of either rubberised or metallic lobe rotors, depending on the application concerned. Our design offers you a pump of compact dimensions that are well out of proportion to its displacement flow volumn, along with an ease of maintenance that really stands out with respect to other pump technologies.

lobe pumps boyser

Boyser Lobe Pump Features

  • Self-priming
  • Reversible rotation
  • Wear-resistant
  • Continous flow (non-pulsed)
  • Low cost and easy maintenance
  • Exclusive, high-performance rotor design
  • Large solids pass
  • Rubber coated or metallic rotors
  • Very compace dimensions
  • Lateral wear plate (easy to replace)
  • Multiple connection configurations
  • Available in stainless or special-grade steel

Model LB-S/70

boyser lobe pump model lb-s 70

Technical Data

  • Capacity: 0.91 l/rev
  • Operating pressure: <10 bar
  • Rubber coated rotors: NBR, EPDM, FKM
  • Metallic rotors avaliable: AISI-316, AISI-420
  • Pump-body material: AISI-316, AISI-410
  • Mechanical seals: Carb. Silicon / Carb. Tungsten, Graphite / Carb. Tungsten
  • Standard connections: DIN DN-50 flanges.
  • Other connections available: DIN 11851 NW,Tri-clamp, SMS, Fast adapters, ANSI flanges, etc.

Model LB-S/90

boyser lobe pump model lb-s 90

Technical Data

  • Capacity: 1.17 l/rev
  • Operating pressure: <6 bar
  • Rubber coated rotors: NBR, EPDM, FKM
  • Metallic rotors avaliable: AISI-316, AISI-420
  • Pump-body material: AISI-316, AISI-410
  • Mechanical seals: Carb. Silicon / Carb. Tungsten, Graphite / Carb. Tungsten
  • Standard connections: DIN DN-65 or DN-80 flanges.
  • Other connections available: DIN 11851 NW, Tri-clamp, SMS, Fast adapters, ANSI flanges, etc.

Model LB-M/100

boyser lobe pump model lb m 100

Technical Data

  • Capacity: 2,79 l/rev
  • Operating pressure: <8 bar
  • Rubber coated rotors: NBR, EPDM, FKM
  • Metallic rotors avaliable: AISI-316, AISI-420
  • Pump-body material: AISI-316, AISI-410
  • Mechanical seals: Carb. Silicon / Carb. Tungsten, Graphite / Carb. Tungsten
  • Standard connections: DIN DN-80 or DN-100 flanges.
  • Other connections available: DIN 11851 NW, Tri-clamp, SMS, Fast adapters, ANSI flanges, etc.

Model LB-M125

boyser lobe pump model lb m 125

Technical Data

  • Capacity: 3,49 l/rev
  • Operating pressure: <4 bar
  • Rubber coated rotors: NBR, EPDM, FKM
  • Metallic rotors avaliable: AISI-316, AISI-420
  • Pump-body material: AISI-316, AISI-410
  • Mechanical seals: Carb. Silicon / Carb. Tungsten, Graphite / Carb. Tungsten
  • Standard connections: DIN DN-100 or DN-125 flanges.
  • Other connections available: DIN 11851 NW, Tri-clamp, SMS, Fast adapters, ANSI flanges, etc.
